- ✔ Inlet & Outlet: BSPT/NPT (Female); Size: 1"; Flow Range: 10-100L/Min
- ✔ Accuracy: ±1%; Repeatablity: ±0.3%; Pressure Rating: 300PSI/21bar; Working Tempreture: -40°C~ 121°C
- ✔ Body Material: Corrosion-Resistant Aluminum Housing Stainless Steel Internal Fitting ; Dimension: 105*32*66mm; Bearings: Ceramic; Shaft: Tungsten Carbide
- ✔ Advantage: Low-cost, high-precision, durable & compact. The internal components are easy to replace, easy maintenance
- ✔ Application: Can be widely used to measure water, light chemicals, gasoline, E15, kerosene, diesel, biodiesel, as well as many other solvents and hydrocarbon-based fluids
★ Specification

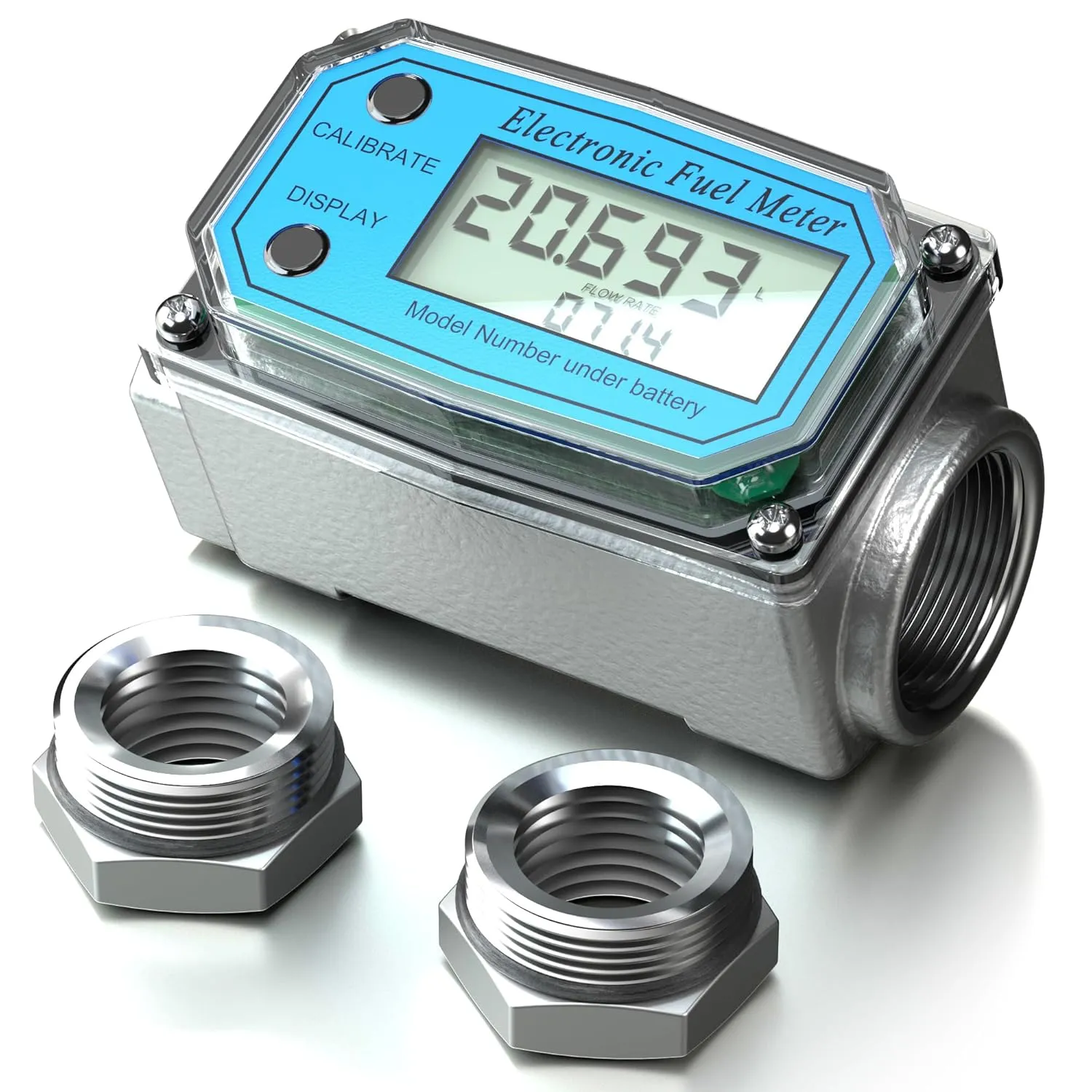

Product Name: Turbine Flow Meter
Body Material: Aluminum
Connection Method: Threaded Connection
Maximum Working Pressure: 6RAR
Single Count: 9999.9
Total Cumulative Count: 999999
Minimum Flow Range: 10L/min
Maximum Flow Range: 100L/min
Measure Accuracy: ±1%
Repetition: ±0.3%
Power Supply: 2 x AAA Batteries
Weight: 490g/1.08lbs
★ Package List
1 x Turbine Flow Meter
2 x AAA Batteries
- Package Dimensions : 6.89 x 3.78 x 3.31 inches; 1.06 Pounds
- Date First Available : June 21, 2022
- Manufacturer : N\P
- Country of Origin : China
