Specifications

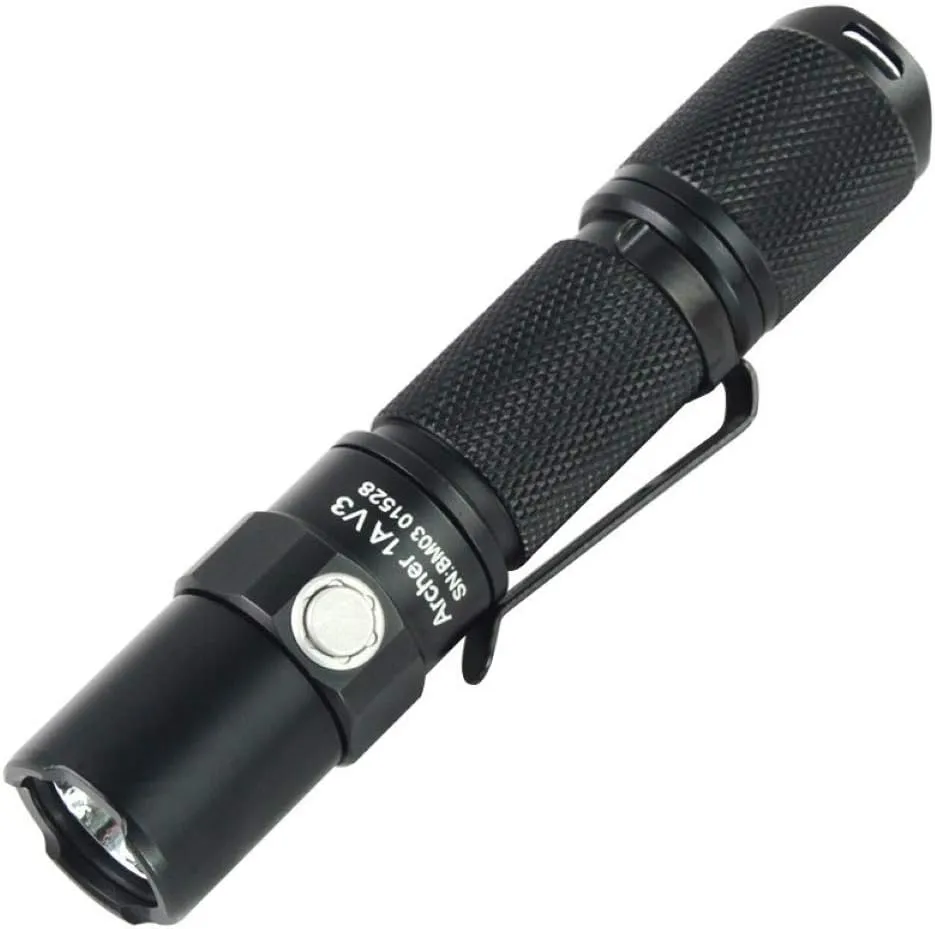

Model Name: ThruNite Archer 1A V3

LED:CREE XP-L V6 LED.

Output & Run-time: Firefly: 0.055 lumen (408 hours); Low: 17 lumen (22 hours); Medium: 75 lumen (5 hours); High: 180 lumen (115 minutes); Strobe: 180 lumen (3.5 hours)

Battery: 1 AA or 14500 battery (not included)

Max output: 180 lumen using one Ni-Mh AA battery

Max run time: 408 hours (Firefly mode)

Working Voltage: 0.9V - 4.2V

Working Temperature: -20℃ - 40℃

Peak Beam Intensity: 1261 cd

Max beam distance: 71 meters

Waterproof to IPX-8 standard (1.5 meters)

Weight: 60 gram（without batteries）

Impact resistant: 2 meters

Dimensions: 110mm in length, 23mm bezel diameter

Accessories: Pocket clip x1 Spare O ring x2 User's manual x1

Operation

Turn On/Off

Press the tail cap halfway to momentarily activate the light. Fully click the tail switch to turn the light On and Off.

Change modes

Five modes in total: Firefly, Low, Medium, High, plus hidden Strobe. When the light is on, single press the side switch to rotate among firefly, low, medium and high. Long press to get strobe and then single press to end it.

Memory function

The light will turn on in the last mode accessed, except for strobe.

Battery Replacement: Take off the tail cap, insert the AA battery into the battery tube of the flashlight with anode ( ) end of battery towards the LED and screw on the tail cap.

NOTE

Please remove the battery from the light when not using it for a long period. There will be a leakage when the battery drains. The leakage will cause permanent damage to the light.
