- [EBTN LCD Display]: BSIDE EBTN LCD provides key performance benefits compared to traditional LCD technology, greatly enhance the reading experience, the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light.

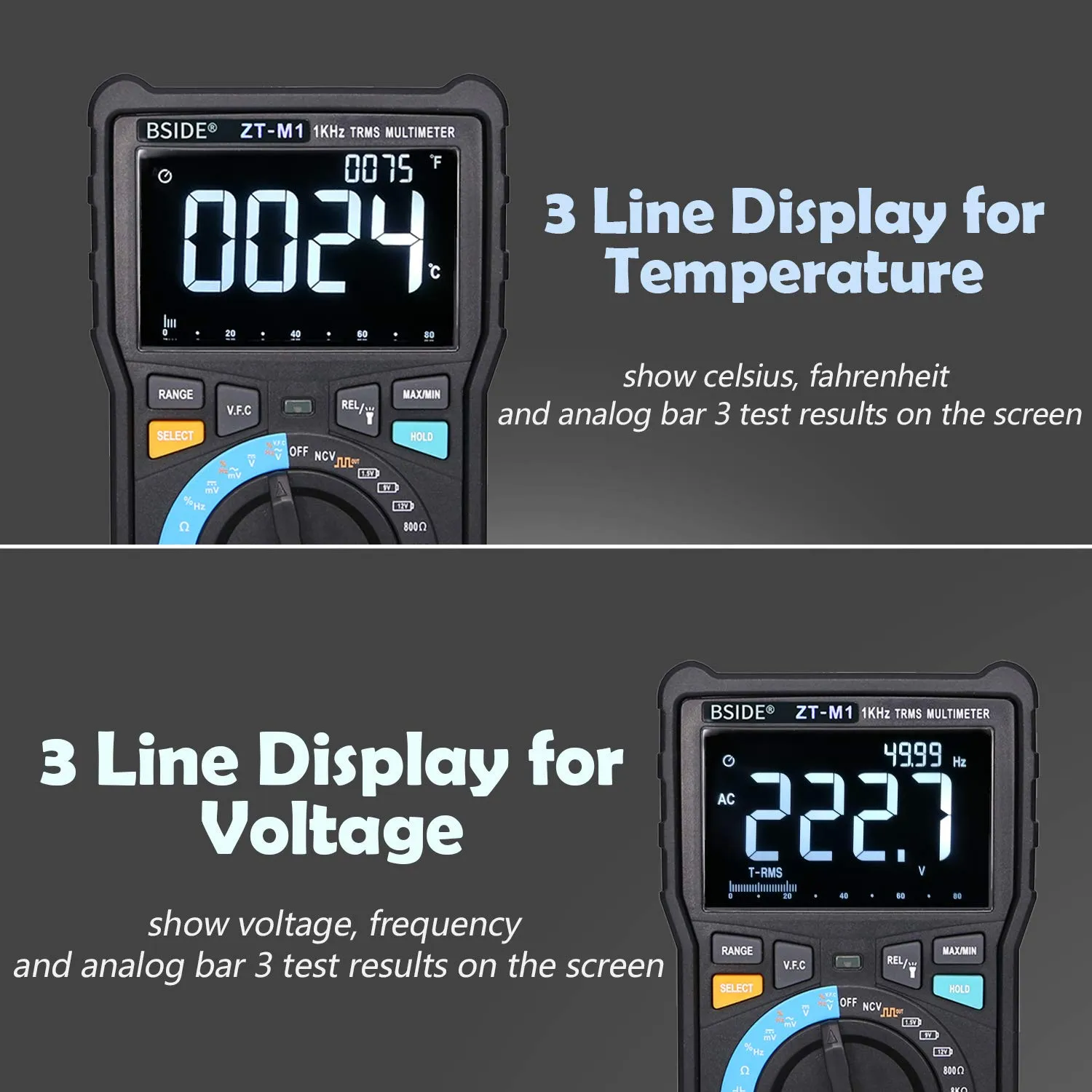

- [Large Screen 3 Line Display]: Vibrant HD display engineered by BSIDE - ultra-large screen can show 3 test results, such as voltage, frequency and analog bar; or Celsius, Fahrenheit and analog bar.

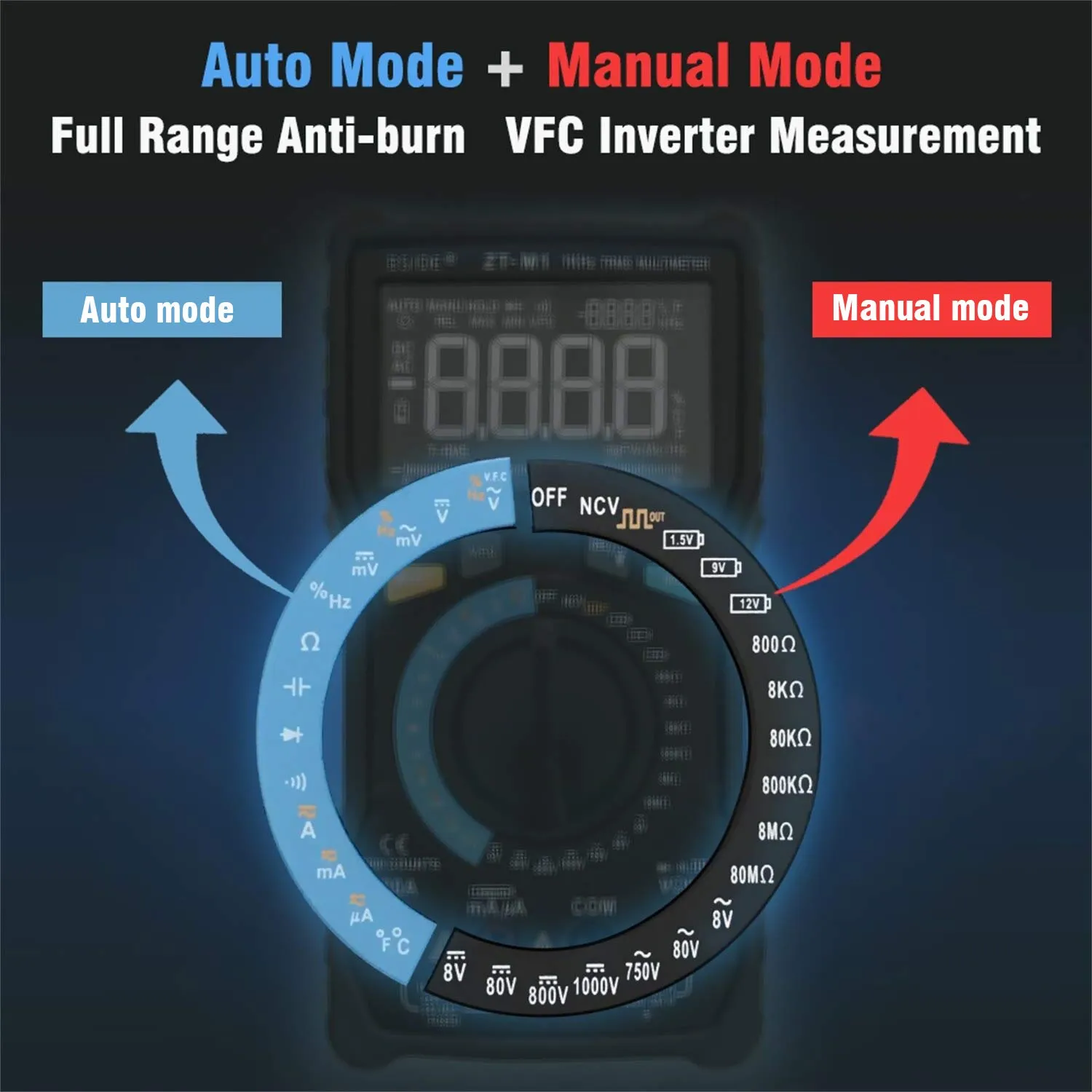

- [Manual & Auto Mode]: Not only suitable for traditional manual switching operation, but also suitable for beginners' no-switching operation.
- [VFC Function]: VFC function can measure the output voltage of inverters.
- [Battery Test & Square Wave Output Function]: Battery test function can more accurately measure battery performance; Square wave generator can output pulse train up to 5MHz.
Features:
EBTN LCD display greatly enhance the reading experience.
VFC test, battery test, square wave output test
Capacitance, temperature, frequency, NCV and diode test
AC/DC voltage, AC/DC current, resistance, continuity, and duty cycle test
True RMS, auto-ranging, data hold with low battery indication
Manual & Auto range
Flashlight with 2 back probe holder
Max/Min reading
Specifications:
Display: 8000 counts
DC Voltage: 800.0mV/8.000V/80.00V/800.0V/1000V ±(0.5% 3)
AC Voltage: 800.0mV/8.000V/80.00V/750V ±(1.0% 3)
DC Current: 800.0μA/8.000mA/8.000mA/80.00mA/800.0mA/8.000A/20.00A ±(1.2% 3)
AC Current: 800.0μA/8.000mA/8.000mA/80.00mA/800.0mA/8.000A/20.00A ±(1.5% 3)
Resistance: 800.0Ω/8.000kΩ/80.00kΩ/800.0kΩ/8.000MΩ±(0.5% 3); 80.00MΩ ±(1.5% 3)
Capacitance:
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(5.0% 20);
9.999mF/99.99mF ±(5.0% 5)
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1% 2)
Duty Cycle: 1%~99% ±(0.1% 2)
Temperature: (-20~1000)℃/(-4~1832)℉ ±(2.5% 5)
Square wave output: 50Hz~5000Hz
Diode: show the forward voltage
NCV: alarm beep sounds and LED blink if detect AC voltage
Continuity: alarm beep sounds if resistance less than 50Ω
Power: 1.5V (AA) x 3 (not included)
Size: 176mm * 91mm * 47mm
Weight: 360g

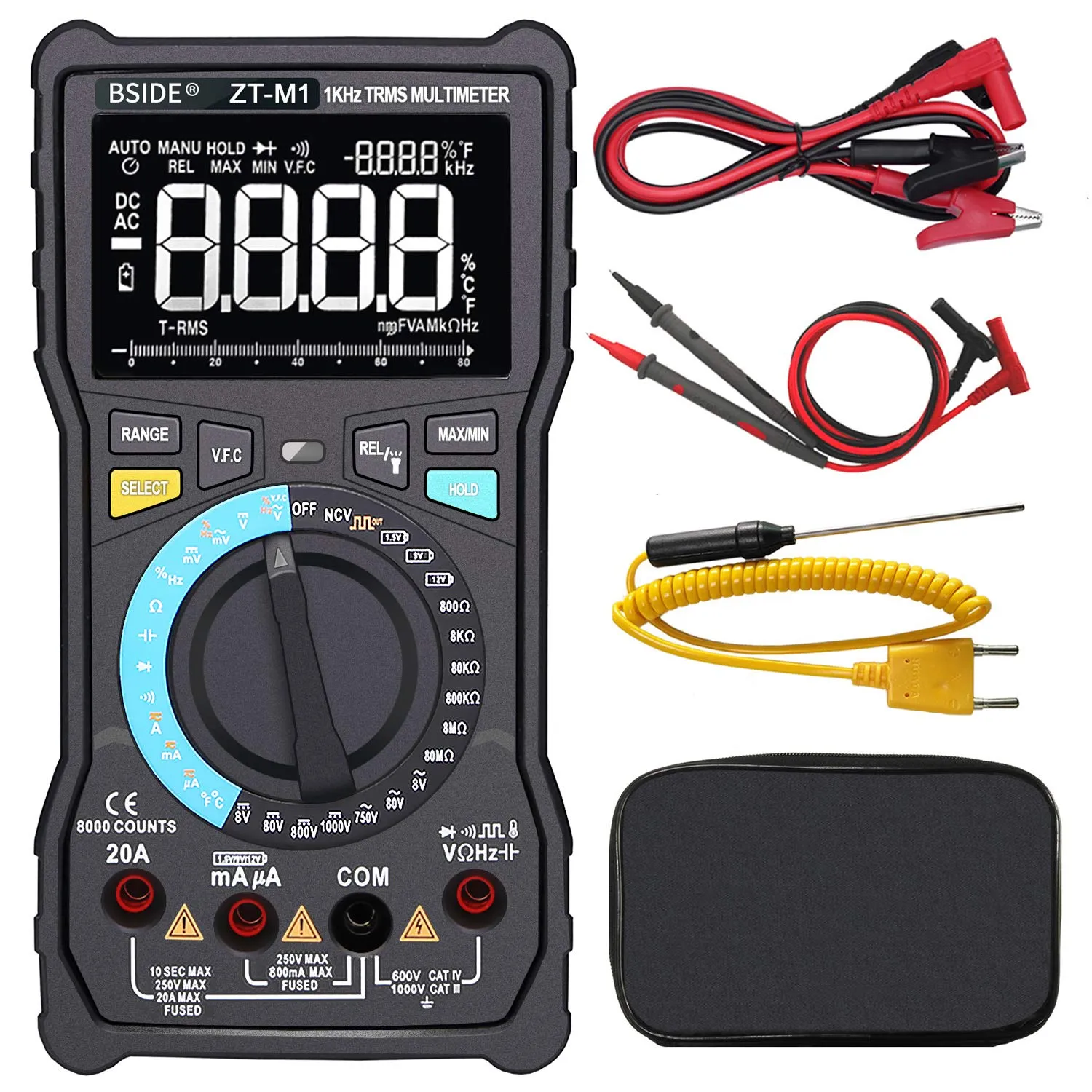

Package Includes:
1 * Multimeter
1 * Probes
1 * Thermocouple
1 * Alligator Clip
1 * Carrying Case
1 * User Manual
Note:
The batteries (1.5V AA * 3)are not included in the package due to Aviation Security Check
- Package Dimensions : 10.08 x 5.08 x 2.68 inches; 12.7 ounces
- Batteries : 3 AA batteries required.
- Date First Available : December 19, 2019
- Manufacturer : BSIDE
